TTE ® natural turf pitch

Hard-wearing turf

Natural Turf pitch PDF

TTE®-MultiDrainPLUS 1000

800 x 400 x 60 mm, ca. 8.6 kg (ca. 27 kg/m2)
Web thickness: 14 / 15 mm

Special Features

  • low compaction of the surface
    => rapid removal of rain water
  • unaffected by frost => playable on independently of the weather
  • through load distribution protection from compaction through use
  • impact dampening/easy on the joints sports grounds
  • high vitality due to a reduced force effect
    and the hard-wearing qualities of the turf
  • a permanently flat even surface due to the interlocking system
  • a good ball behaviour
  • ideal for renovations in the goal post area
  • Self-build is possible (for example for clubs)

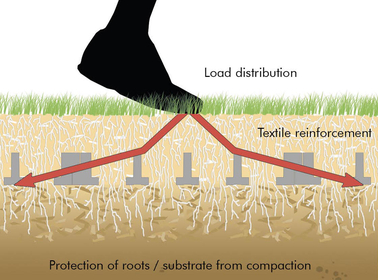

Hard wearing turf



The high load distribution function of the TTE® systems secures permanent evenness. Roots and the substrate are protected against compaction and a force effect and the vegetation capability and hard-wearing qualities are increased enormously.

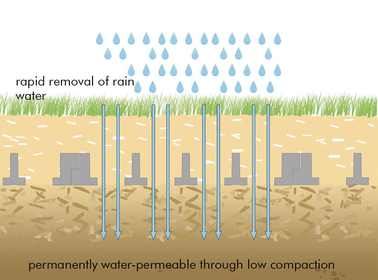

Weather proof



Low compaction substrate and protected against compaction through use are achieved by a high drainage performance. The rapid removal of rain water allows use of the field independently of the weather.

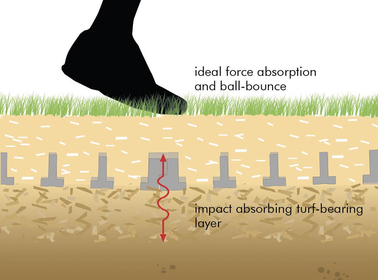

Playing comfort



A dynamic structure allows ideal force absorption and a good ball behaviour. Playing comfort and gentle treatment of the joints are permanently secured at a constantly high level.

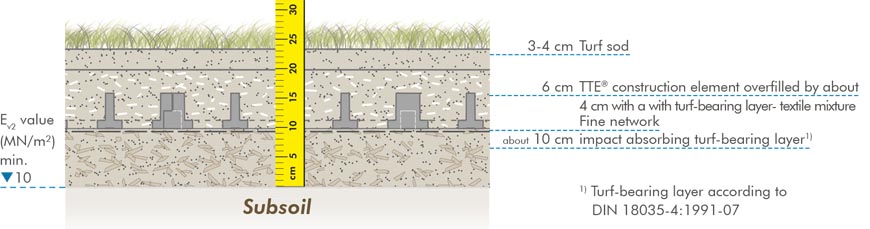

A construction cross-section of a TTE® natural turf pitch

Renovation of a goal post area using TTE®

1. Initial area

2. Loosening the ground

3. Application of the impact absorbing turf-bearing layer

4. Laying of TTE® elements on the fine network

5. Installation of the top soil-fleece mixture

6. The finished turf area
