TTE® lunging ring
Based on the formation of a disc, reduced hoof beat formation - ideal as a self-build
TTE®-MultiDrain-PLUS 2000
TTE®-MultiDrain-PLUS 2000 upper side
TTE®-MultiDrain-PLUS 2000 under side
Material - 100 % recycled plastic, neutral to the environment, (Duales System Deutschland)
Art. No. - 1351.4080.20
Colour - grey
Dimensions - 800 x 400 x 60 mm with 32 chambers (size 80 x 80 mm)
Interlocking - 1.5 cm, 1m² = 3.125 pieces
Proportion of compartments - 72% of the t
Wall thickness - an upper side about 14 mm thick, the underside about 15 mm thick
Upper side - slip-inhibiting pimpled webs
Underside - a wide T-support (about 4.2 cm)
Weight - about 8.7 kg (about 27 kg/m²)
Loading capacity, static - about 147 kN (about 15 t) per test body (about 20 x 20 cm, consisting of 4 unfilled chambers) that is about 10 N/mm 2 tested by TÜV Süd
per Pallet - 28,8m² (90 pieces)
Max. delivery quantity per lorry - 30 pallets / 864m²
Pallet size - LxBxH: 123 x 85 x 200 cm
WHY is the TTE® construction principle the right solution? (Comparison with a light grid)
- TTE® is significantly more stable than other riding arena plates and light grids
- the system replaces the base course layer (no excavation & compaction)
- reduced hoof beat formation due to formation of a lunging disc an ON TOP construction and protection from compaction (through load distribution) securing seeping away of rain water by up to 100%
- an impact dampening/easy on the joints construction principle => construction hard onto soft (natural soil)
- residue-free removal and a high resale value (about 50% after 5 years)
- a simple approval process => no intervention in the ground - the landscape protection concept

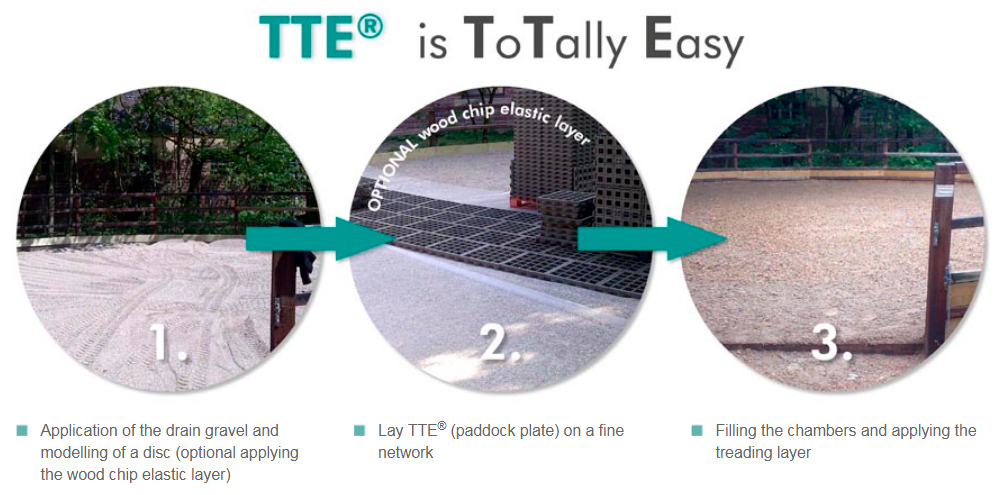

- simple and quick implementation - possible as a self-build
Elastic layer made out of wood chip
- load distribution of the TTE® elements allow overbuilding of an elastic layer
- the increased impact dampening leads to increased wear-reduction on the joints and system
- the elastic layer insulates from the cold and promotes rapid thawing of ice and snow

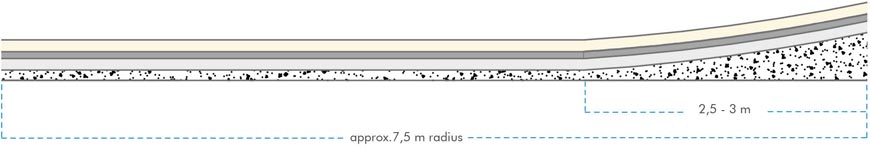

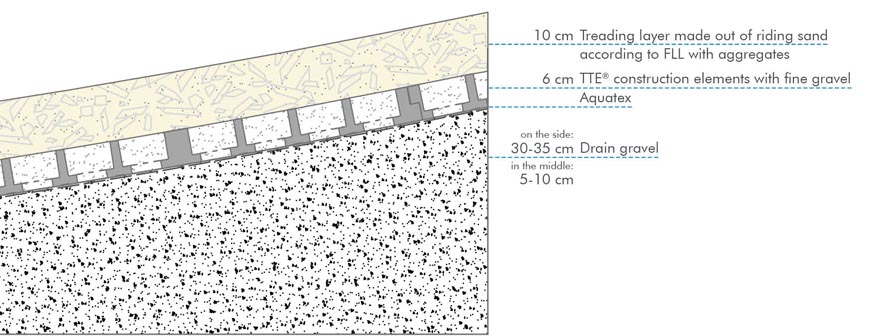

A construction cross-section of a TTE® lunging disc
Our recommendation:
An elastic layer for increased gentle treatment of the joints
A roughly 10 cm layer of wood chip can be used as an elastic layer (bedding) according to the use. This allows a particularly strong spring effect for pleasant, easy on the joints and low wear lunging. The elastic layer also insulates from the cold.
TTE® lunging ring
Based on the formation of a disc, reduced hoof beat formation - ideal as a self-build
TTE®-MultiDrainPLUS 3000
800 x 400 x 60 mm, approx. 8.6 kg/piece (ca. 27 kg/m²) Web thickness: 14 / 15 mm
WHY is the TTE® construction principle the right solution? (Comparison with a light grid)
- TTE® is significantly more stable than other riding arena plates and light grids
- the system replaces the base course layer (no excavation & compaction)
- reduced hoof beat formation due to formation of a lunging disc an ON TOP construction and protection from compaction (through load distribution) securing seeping away of rain water by up to 100%
- an impact dampening/easy on the joints construction principle => construction hard onto soft (natural soil)
- residue-free removal and a high resale value (about 50% after 5 years)
- a simple approval process => no intervention in the ground - the landscape protection concept
- simple and quick implementation - possible as a self-build
Elastic layer made out of wood chip
- load distribution of the TTE® elements allow overbuilding of an elastic layer
- the increased impact dampening leads to increased wear-reduction on the joints and system
- the elastic layer insulates from the cold and promotes rapid thawing of ice and snow

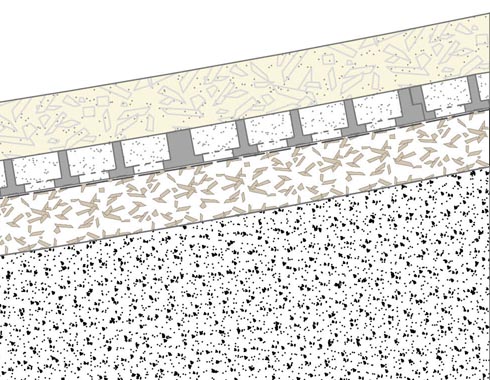

A construction cross-section of a TTE® lunging disc
Our recommendation:
An elastic layer for increased gentle treatment of the joints
A roughly 10 cm layer of wood chip can be used as an elastic layer (bedding) according to the use. This allows a particularly strong spring effect for pleasant, easy on the joints and low wear lunging. The elastic layer also insulates from the cold.
