TTE® horse walker

without groove formation - easy on the joints - ideal as a self-build

Lunging ring PDF

The floor of a horse exerciser is under a great deal of load through permanent loading always on the same “track". This must also, at the same time, allow running which is as gentle as possible on the joints. The TTE® system solves this requirement through the combination of the low wear, water permeable TTE® paving with an elastic layer below the TTE® construction elements.

Lunging ring PDF

TTE®-MultiDrainPLUS 3000

800 x 400 x 60 mm, approx. 8.6 kg/piece (ca. 27 kg/m²) Web thickness: 14 / 15 mm

  • TTE® is significantly more stable than other riding arena plates and light grids
  • the system replaces the base course layer (no excavation & compaction)
  • load distribution protection against groove formation and compaction
  • an ON TOP construction and protection from compaction secure seeping away of rain water by up to 100% => build-up of mud is impossible
  • an impact dampening/easy on the joints construction principle => construction hard onto soft (natural soil)
  • residue-free removal and a high resale value (about 50% after 5 years)
  • a simple approval process => no intervention in the ground - the landscape protection concept
  • simple and quick implementation - possible as a self-build

Elastic layer made out of wood chip

  • the interlocking and load distribution of the TTE® elements allow overbuilding of an elastic layer
  • the increased impact dampening leads to increased wear-reduction on the joints and system
  • the elastic layer insulates from the cold and promotes rapid thawing of ice and snow

The TTE® system is suitable as a riding arena and exercise area ground reinforcement - the DLG test report

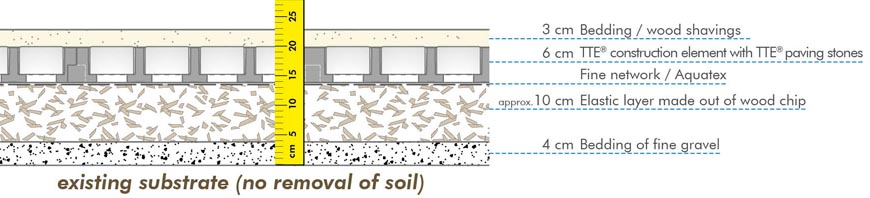

A construction cross-section of a TTE® horse walker

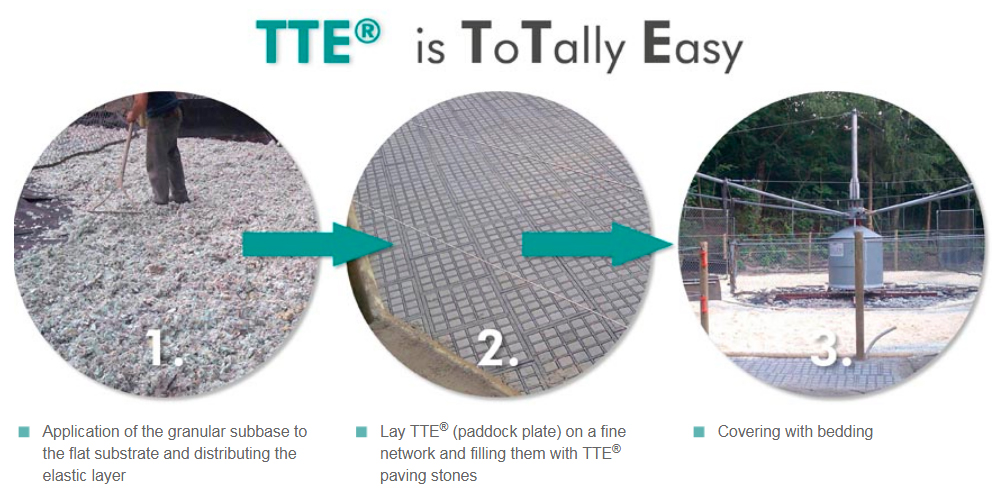

An impact dampening TTE® horse walker
