TTE® riding arena

The riding arena without a substructure - the highest riding comfort as a self-build

TTE®-MultiDrainPLUS 3000

800 x 400 x 60 mm, ca. 8.6 kg (ca. 27 kg/m2)
Web thickness: 14 / 15 mm

DLG Test Report

TUV Certificate



WHY is the TTE® construction principle the right solution? (Comparison with a light grid)



  • TTE® is significantly more stable than other riding arena plates and light grids
  • the system replaces the base course layer (no excavation & compaction
  • an ON TOP construction and protection from compaction (through load distribution) securing seeping away of rain water by up to 100% => build-up of mud is impossible
  • an impact dampening/easy on the joints construction principle => construction hard onto soft (natural soil)
  • residue-free removal and a high resale value (about 50% after 5 years)
  • a simple approval process => no intervention in the ground - the landscape protection concept
  • simple and quick implementation - possible as a self-build
  • the highest riding comfort for dressage, jumping and Western arenas

Riding arena with an elastic layer made out of wood chip

  • the interlocking and load distribution of the TTE® elements allow overbuilding of an elastic layer
  • the increased impact dampening the wear-reduction on the joints and structure due to riding sports is increased
  • the elastic layer insulates from the cold and promotes rapid thawing of ice and snow on the riding arena


The TTE® system is suitable as a riding arena and exercise area ground reinforcement - the DLG test report

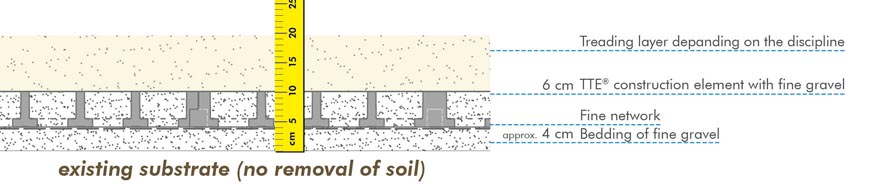

A construction cross-section of a TTE® riding arena



Whether as a jumping arena, dressage arena or a Western arena, only the treading layer varies according to the discipline. Riding arenas which will just be used for Reining require a modified structure.

Our recommendation:

An elastic layer for even more easy on the joints riding

A riding arena construction with elastic wood - video >>

A roughly 10 cm layer of wood chip can be used as an elastic layer (bedding) for riding arena construction according to the use. This allows a particularly strong spring effect in the arena, for pleasant, easy on the joints and low wear riding. The elastic layer also insulates from the cold.
