TTE®-MultiDrain-PLUS 3000

MDP 3000 for riding arenas (higher pimples), MDP 1000 for horse exercise areas

TTE®-MultiDrain-PLUS 3000

Material - 100 % recycled plastic, neutral to the environment, (Duales System Germany)

Art. No. - 1351.4080.30 / 1351.4080.10

Colour - grey

Dimensions - 800 x 400 x 60 mm with 32 chambers (size 80 x 80 mm)

Interlocking - 1.5 cm, 1m² = 3.125 pieces

Proportion of compartments - 72% of the total area

Wall thickness - an upper side about 14 mm thick, the underside about 15 mm thick

Upper side - slip-inhibiting pimpled webs

Underside - a wide T-support (about 4.2 cm)

Weight - about 8.7 kg (about 27 kg/m²)

Loading capacity, static - about 147 kN (about 15 t) per test body (about 20 x 20 cm, consisting of 4 unfilled chambers, tested by TÜV Süd)

Slopes/gradients - can be used without any difficulty up to about 10%

per Pallet - 28,8m² (90 pieces)

Max. delivery quantity per lorry - 864 m² (30 paletts)

Pallet size LxBxH - 123 x 85 x 200 cm

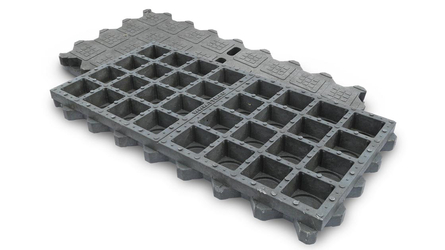

TTE®-MultiDrain-PLUS 4000

for riding halls and riding arenas with water storage (to combinate with MDP 3000)

TTE®-MultiDrain-PLUS 4000 (with a closed base)

Material - 100 % recycled plastic, neutral to the environment, (Duales System Germany)

Art. No. - 1351.4080.40

Colour - grey

Dimensions - 800 x 400 x 60 mm with 32 chambers (size 80 x 80 mm)

Interlocking - 1.5 cm, 1m² = 3.125 pieces

Proportion of compartments - 72% of the total area

Wall thickness - an upper side about 14 mm thick, the underside about 15 mm thick

Upper side - slip-inhibiting pimpled webs

Underside - a wide T-support (about 4.2 cm)

Weight - about 9,7 kg (about 30 kg/m²)

Loading capacity, static - about 147 kN (about 15 t) per test body (about 20 x 20 cm, consisting of 4 unfilled chambers, tested by TÜV Süd)

Slopes/gradients - can be used without any difficulty up to about 10%

per Pallet - 28,8m² (90 pieces)

Max. delivery quantity per lorry - 748,8m² (26 paletts)

Pallet size - LxBxH: 123 x 85 x 200 cm

The TTE® system is TÜV certified

and therefore fulfils all of the following requirements

dimensionally stable - based on ISO 11359

pressure resistant - according to DIN EN ISO 604

loading class SLW 60 - according to DIN 1072 with a max. wheel load of 100kN

suitable for surfaces used by a Fire Brigade in accordance with DIN 14090 “Surfaces for a Fire Brigade on on parcels of land“ (axial load of 10t/100kN)

UV stable - according to DIN 4892-3

weather-proof - according to DIN EN 438-2 Number 19

PAK testing and testing of the heavy metals content according to ISO 11885 / SAA-L-1510 / DIN 38415-T06

neutral for the environment - according to DIN 38415-T06 / DIN 38412 - L30 / DIN 38412 - L33

resistant to chemicals - to deionate, petrol, engine oil, caustic soda solution, hydrochloric acid

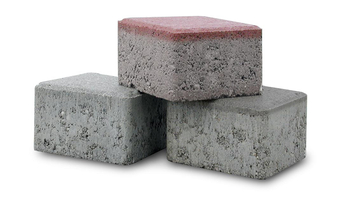

TTE®-Paving stones

TTE®-paving stone (grey, ruby red, anthracite)

Colours - grey,ruby red and anthracite

Weight - 610 g/piece

Material - strengthened, break-resistant concrete

Dimension - 74 x 74 x 48 mm

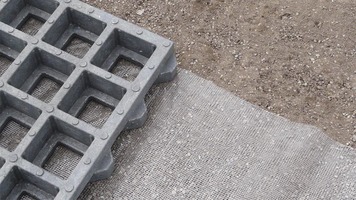

Fine network



Weight - 24 g/m²

Mesh size - ≤ 4 mm

Roller width - 3.20 m

Material - PE
